Cordova Charisma Natural-Light Bathroom LED Mirror with 1-inch Frosted Vertical Bands - 3 Sizes

The 3,000 degree Kelvin LED lighting shines through to you via two 1 inch bands of frosted glass. The edges of the mirror are polished adding to the sleek lines. And this can be a welcome addition to your bathroom. Or any room. There are four sizes to accommodate smaller to larger spaces. The LED lifespan is 50,000 hours, yet they're replaceable in the unlikely event one should ever fail. AND, the LEDs are dimmable by a forward-phase dimming switch (not included) - or simply use a standard on/off wall switch for control. There are no special requirements and the mirror can operate on 120 or 240 Volts - hardwired.

1. 24" x 36" - 3,200 Lumens, 38 Watts

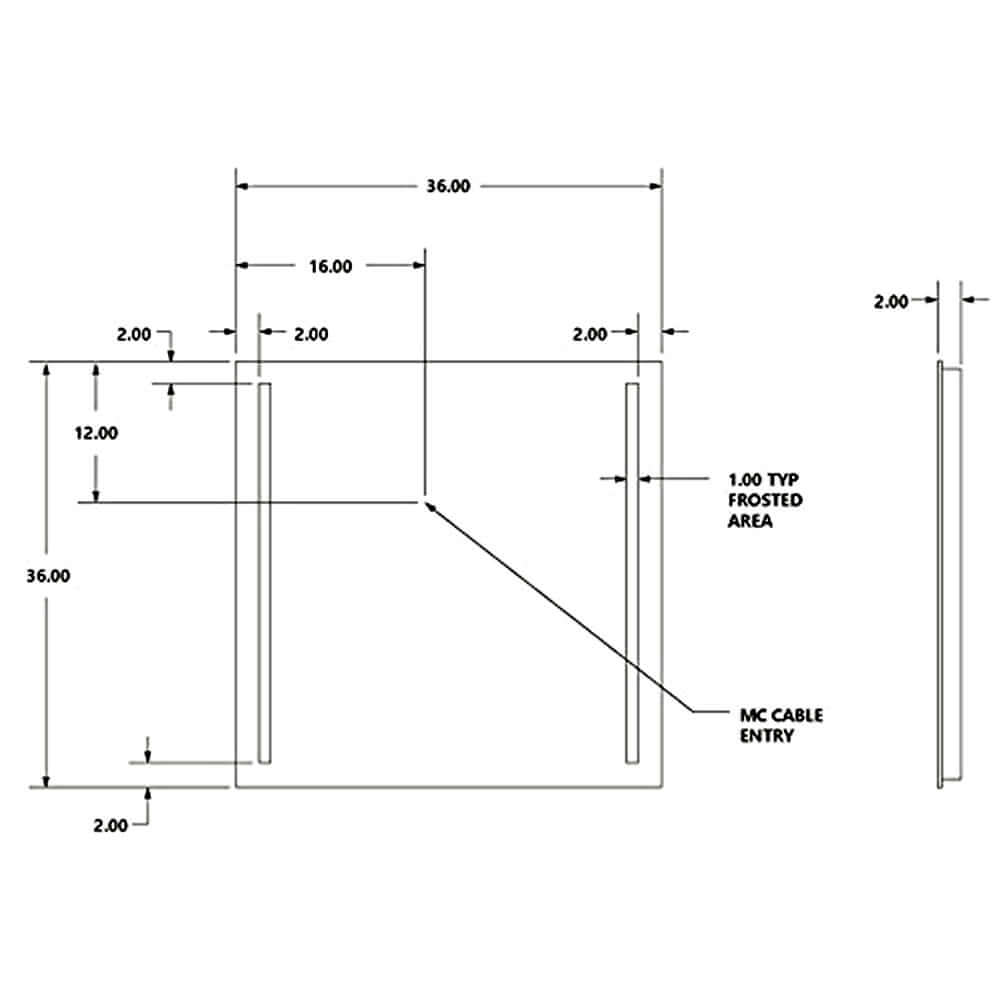

2. 36" x 36" - 3,200 Lumens, 38 Watts

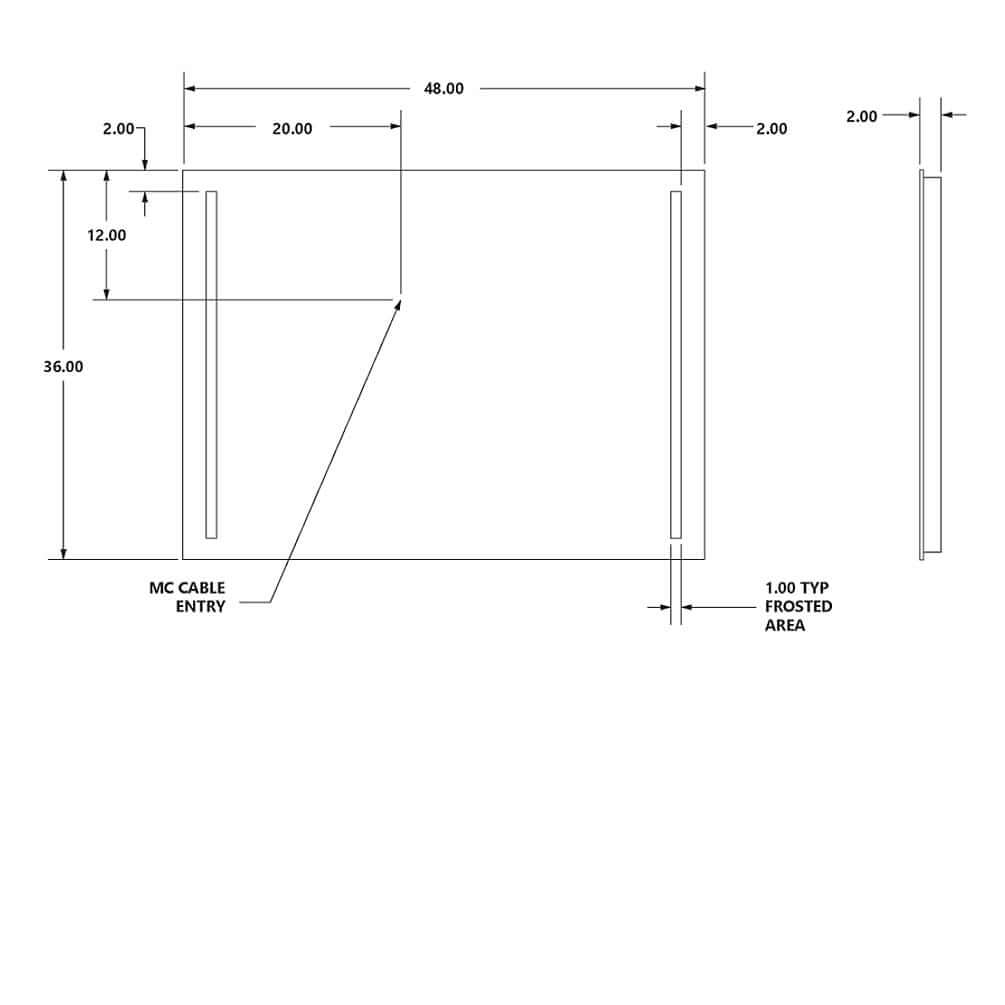

3. 48" x 36" - 3,200 Lumens, 38 Watts

Features

• Copper-free, corrosion-resisant PrimMirror glass with dual 1 inch precision frosted vertical bands
• LED Lighted font-facing and halo wall lighting with 50,000 hour replaceable forward-phase dimmable LEDs.
• LEDs are at 3,000 degrees Kelvin, almost identical to regular incandescent lighting, and with a Color Rendering Index (CRI) of 90+
• 120-240 Volts. 5-year limited Manufacturer's warranty. UL Listed for the US and Canada.
• Easy Installation.

Mounting Instructions

Mounting Instructions

Lighted mirrors include two components: a metal chassis and a mirror face. The chassis mounts to the wall through mounting holes situated near the corners of the chassis. The mounting holes make it easy to mount the chassis to a structurally sound surface such as wall studs. After the chassis is mounted and hardwired, the mirror face is hung on the front of the chassis.

The overall 2″ depth of the lighted mirror includes the 1.75″ chassis plus the .25″ mirror. The chassis features a white powder-coated finish to complement your room's color scheme, and is designed to be surface mounted to your wall. However, if you would like to recess the lighted mirror, ensure the mirror face is proud of the wall and only the chassis is recessed.

A 1″ clearance is needed above the top edge of the mirror in order to hang the mirror properly. Additionally, maintain .25" on the left, right, and bottom of the mirror to allow for installation tolerances.

The chassis comes ready to hardwire for 120V-240V. The power whip should come through the back of the unit for the hardwire connection. A 36" long power whip can be prepared 12" down from the top of the mirror and centered from left to right. A quick disconnect is included so the wires can easily be connected. No J-Box is required. Width x Height Orientation

Since the mirror hangs on the chassis, it cannot be mounted sideways. All lighted mirrors must be mounted in the width x height orientation indicated.

Electrical Hook-Up Instructions

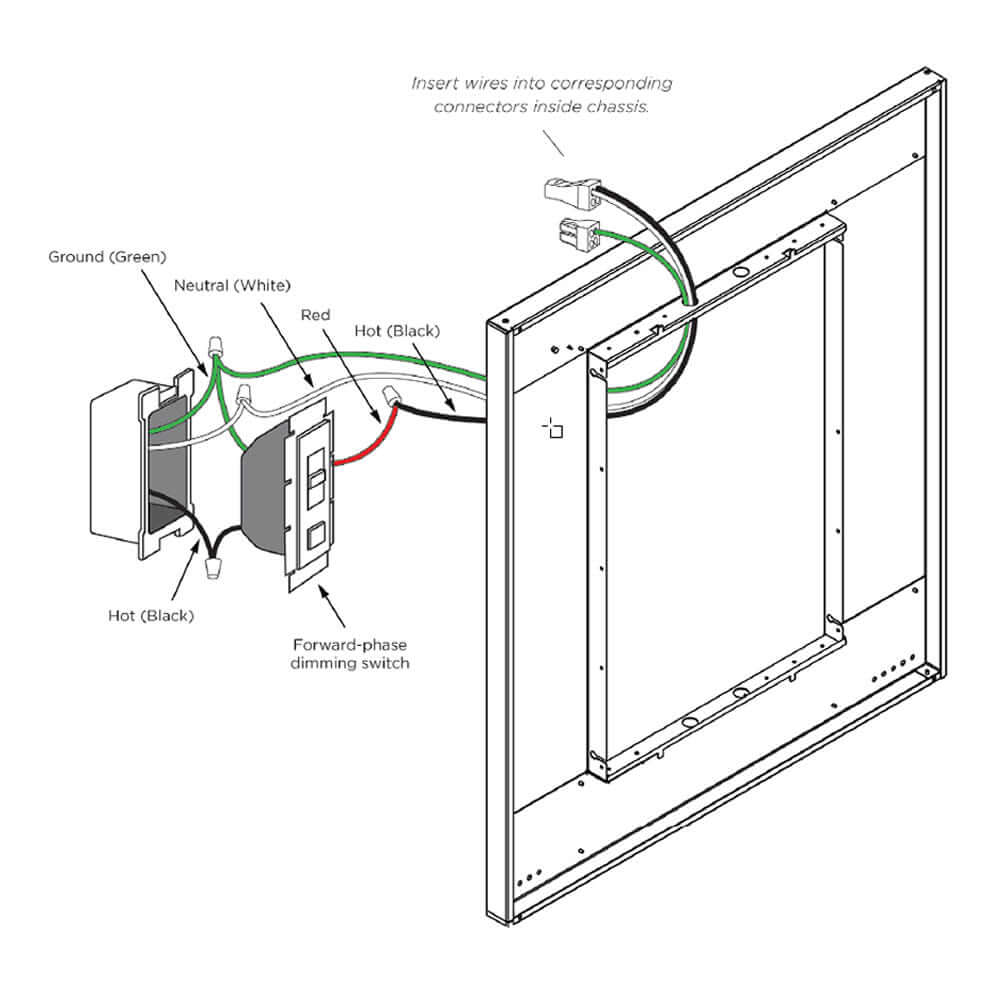

The Charisma and Unity lighted mirrors come standard with LEDs that are dimmable. The LEDs can either be controlled by a standard on/off wall switch or a forward-phase dimming switch. Whether using an on/off switch or a forward-phase dimming switch, there are no special requirements other than a hot, neutral, and ground, 120V or 240V hardwire connection.

The recommended two-wire forward-phase dimming switch is the Leviton IPL06-10Z (not included). The above diagram is for illustrative purposes only. Refer to the switch manufacture's wiring diagram for detailed instructions.

The Celestino lighted mirror comes with non-dimmable LEDs that can only be controlled by a standard on/off wall switch. There are no special requirements other than a hot, neutral, and ground, 120V or 240V hardwire connection.
