Cordova Grandeur LED Vanity Mirror - Add a Touch of Glamour to Your Bathroom

Cordova's Grandeur LED Vanity Mirror at 30" round provides forward-facing task lighting and luxurious ambient wall-glow lighting. A finished side view is accomplished through the diffuser surrounding the mirror, through which the LED lighting emanates The Grandeur is made with lead-free, copper-free corrosion resistant PrimMirror glass and is suitable for damp environments such as bathrooms. Using a forward-phase wall-switch/dimmer (by others) the LEDs are dimmable. LEDs are rated at 50,000 hours - or 30 years of daily 2-hour operation. 3,690 Lumens, 40 Watts. The CRI (color rendering index) is 90+ which means you get high-resolution natural colors.

Features

• Cordova's Grandeur LED Vanity Mirror emits forward task-lighting as well as rear and side ambient wall glow lighting.
• Lead-free copper-free corrosion-resisant PrimMirror glass with 2 inch precision frosted LED vertical band running around the circumference.
• LED Lighted font-facing and halo wall-glow lighting with 50,000 hour dimmable LEDs.
• For use with a forward-phase dimmer/wall switch (by others).
• LEDs are bright at 3,690 Lumens at 3,000 degrees Kelvin, very, very close to regular incandescent lighting. The Color Rendering Index (CRI) is 90+ giving accurate and natural color rendition.
• 120 Volts. 3-year limited Manufacturer's warranty. UL Listed for the US and Canada. Title 24 compliant.

Mounting Instructions

Cordova Mounting Instructions

Mounting

Lighted mirrors include three components: a wall cleat, magnetic catch plates and the mirror fixture. Mounting holes are provided in the wall cleat and the catch plates for ease of installation. After the cleat and catch plates are mounted, the mirror fixture is hung on the wall cleat. Magnets at the bottom of the fixture will connect with the catch plates holding the bottom of the fixture to the wall.

The mirror fixture is designed to be surface mounted to your wall. However, if you would like to recess the unit, ensure the mirror face is proud of the wall and only the LED extrusion and power box are recessed. Units with wall glow should not be recessed. Mirror fixture should be mounted to wall studs or other suitable backing material.

A 1″ clearance is needed above the top edge of the mirror to hang the mirror properly. Additionally, maintain .25″ on the left, right, and bottom of the mirror to allow for installation tolerances.

The chassis comes ready to hardwire for 120V. The power whip should come through the back of the unit for the hardwire connection. A 36″ long power whip can be prepared 12″ down from the top of the mirror and centered from left to right. A quick disconnect is included so the wires can easily be connected. No J-Box is required.

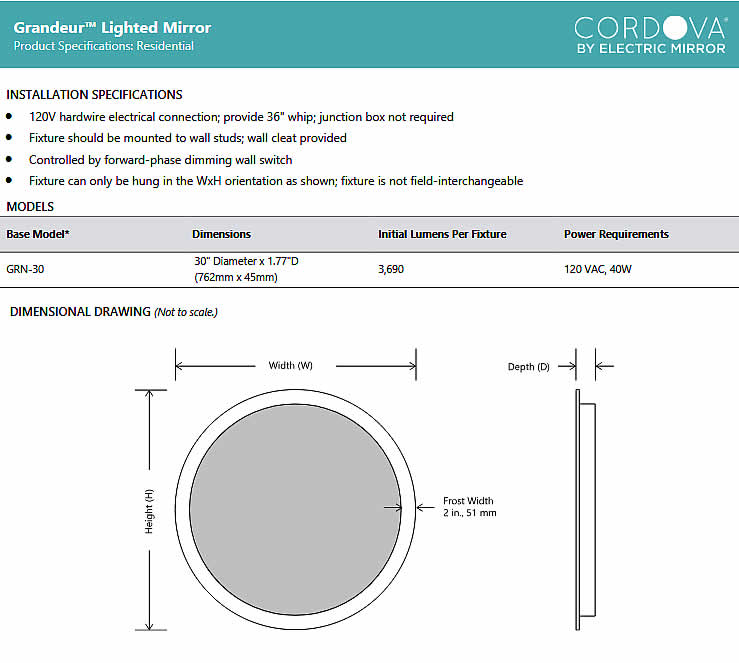

Width x Height Orientation

Fixture can only be hung in the WxH orientation as shown; fixture is not field-interchangeable.
