Cordova Harmony LED Vanity Mirror - a Luxurious Alternative to Wall Sconces - 2 Sizes

Cordova's Harmony LED Vanity Mirrors provide forward-facing task lighting combined with ambient wall-glow lighting. The wall glow is emitted through side diffusers for a finished side view. The Harmony uses lead-free, copper-free corrosion resistant PrimMirror glass and is suitable for damp environments such as bathrooms. LEDs are dimmable using a forward-phase wall switch/dimmer - by others. LEDs are rated at 50,000 hours - or 23 years of 365-day 3-hour operation. 3,240 Lumens, 35 Watts. The CRI (color rendering index) is at least 90 to render colors normally and naturally for perfect grooming. Meets UL/cUL standards and is Title 24 compliant. ADA Compliant.

Features

• Cordova's Harmony LED Vanity Mirror are a great and luxurious alternative to wall sconces.
• Lead-free copper-free corrosion-resisant PrimMirror glass with 2 inch precision frosted LED vertical bands at each side.
• LED Lighted font-facing and halo wall-glow lighting with 50,000 hour dimmable LEDs.
• For use with a forward-phase dimmer/wall switch (by others).
• LEDs are at 3,000 degrees Kelvin, very, very close to regular incandescent lighting, and with a Color Rendering Index (CRI) of 90+ giving natural color rendition.
• 120 Volts. 3-year limited Manufacturer's warranty. ADA Compliant. UL Listed for the US and Canada. Title 24 compliant.

Mounting Instructions

Cordova Mounting Instructions

Mounting

Lighted mirrors include three components: a wall cleat, magnetic catch plates and the mirror fixture. Mounting holes are provided in the wall cleat and the catch plates for ease of installation. After the cleat and catch plates are mounted, the mirror fixture is hung on the wall cleat. Magnets at the bottom of the fixture will connect with the catch plates holding the bottom of the fixture to the wall.

The mirror fixture is designed to be surface mounted to your wall. However, if you would like to recess the unit, ensure the mirror face is proud of the wall and only the LED extrusion and power box are recessed. Units with wall glow should not be recessed. Mirror fixture should be mounted to wall studs or other suitable backing material.

A 1″ clearance is needed above the top edge of the mirror to hang the mirror properly. Additionally, maintain .25″ on the left, right, and bottom of the mirror to allow for installation tolerances.

The chassis comes ready to hardwire for 120V. The power whip should come through the back of the unit for the hardwire connection. A 36″ long power whip can be prepared 12″ down from the top of the mirror and centered from left to right. A quick disconnect is included so the wires can easily be connected. No J-Box is required.

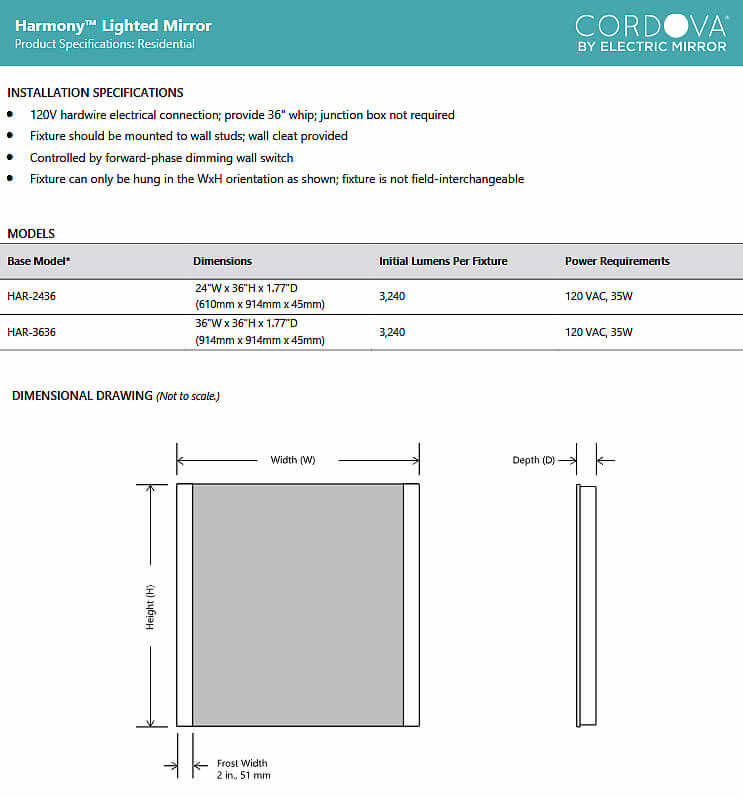

Width x Height Orientation

Fixture can only be hung in the WxH orientation as shown; fixture is not field-interchangeable.
