Cordova Mystique LED Vanity Mirror - a Circle of Bright Light - 3 Sizes

The Mystique LED Vanity Mirror by Cordova emits a circle or bright light through a 1" frosted band running around the circumference of the mirror, 2" from the edge. There are three sizes - a 21" x 30" Oval, plus 30" and 36" Round designs. The Mystique glass is copper-free, lead-free, corrosion resistant PrimMirror glass, and the entire unit is suitable for use in damp environments - like bathrooms. The dimmable LED lighting is controlled by a forward-phase wall switch/dimmer - by others. LED life is estimated at 50,000 hours which equates to 30 years of 2-hour daily operation. The Color Rendering Index is 90+ which means you'll see natural and vibrant color rendition in your mirror. Classic and luxurious for your bathroom.

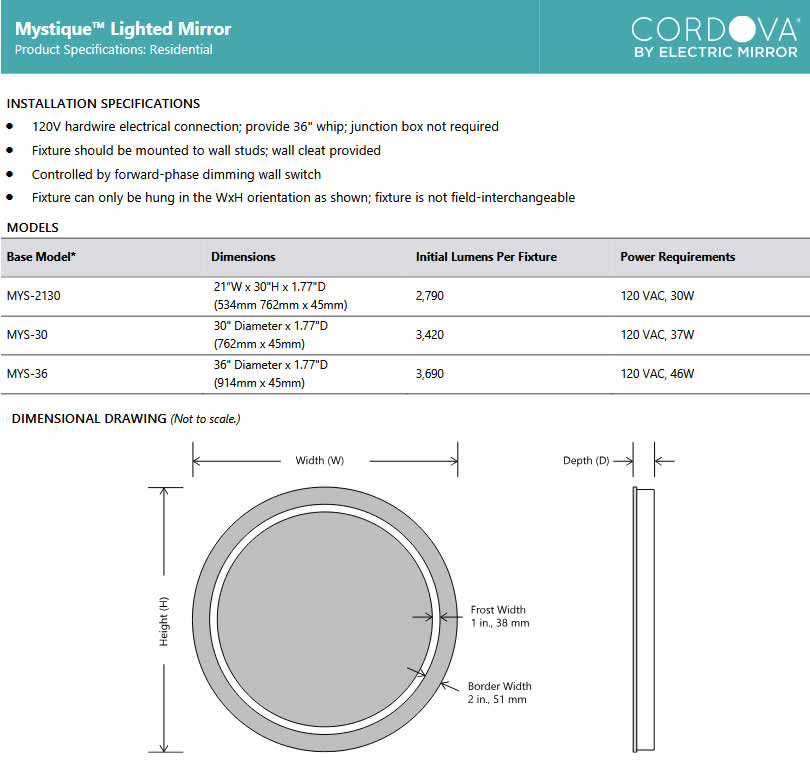

• 30" Round - 3,420 Lumens, 30 Watts
• 36" Round - 3,690 Lumens, 46 Watts
• 21" x 30" High Oval - 2,790 Lumens, 30 Watts

Features

• The Mystique LED Vanity Mirror by Cordova comes in 30" or 36" Round and a unique 21" x 30" Oval.
• Lead-free copper-free corrosion-resisant PrimMirror glass with 2 inch precision frosted LED vertical band running around the circumference.
• LED Lighted font-facing task lighting is emitted through a 1" frosted band, running around the circumference, 2" from the edge.
• For use with a forward-phase dimmer/wall switch (by others).
• LEDs coloring is at 3,000 degrees Kelvin, very, very close to regular incandescent lighting. The Color Rendering Index (CRI) is 90+ giving accurate and natural color rendition.
• 120 Volts. 3-year limited Manufacturer's warranty. UL Listed for the US and Canada. Title 24 compliant.

Mounting Instructions

Cordova Mounting Instructions

Mounting

Lighted mirrors include three components: a wall cleat, magnetic catch plates and the mirror fixture. Mounting holes are provided in the wall cleat and the catch plates for ease of installation. After the cleat and catch plates are mounted, the mirror fixture is hung on the wall cleat. Magnets at the bottom of the fixture will connect with the catch plates holding the bottom of the fixture to the wall.

The mirror fixture is designed to be surface mounted to your wall. However, if you would like to recess the unit, ensure the mirror face is proud of the wall and only the LED extrusion and power box are recessed. Units with wall glow should not be recessed. Mirror fixture should be mounted to wall studs or other suitable backing material.

A 1″ clearance is needed above the top edge of the mirror to hang the mirror properly. Additionally, maintain .25″ on the left, right, and bottom of the mirror to allow for installation tolerances.

The chassis comes ready to hardwire for 120V. The power whip should come through the back of the unit for the hardwire connection. A 36″ long power whip can be prepared 12″ down from the top of the mirror and centered from left to right. A quick disconnect is included so the wires can easily be connected. No J-Box is required.

Width x Height Orientation

Fixture can only be hung in the WxH orientation as shown; fixture is not field-interchangeable.
