Cordova Prestige LED Vanity Mirror Forward-Facing Task Lighting and Luxurious Wall Glow - 3 Sizes

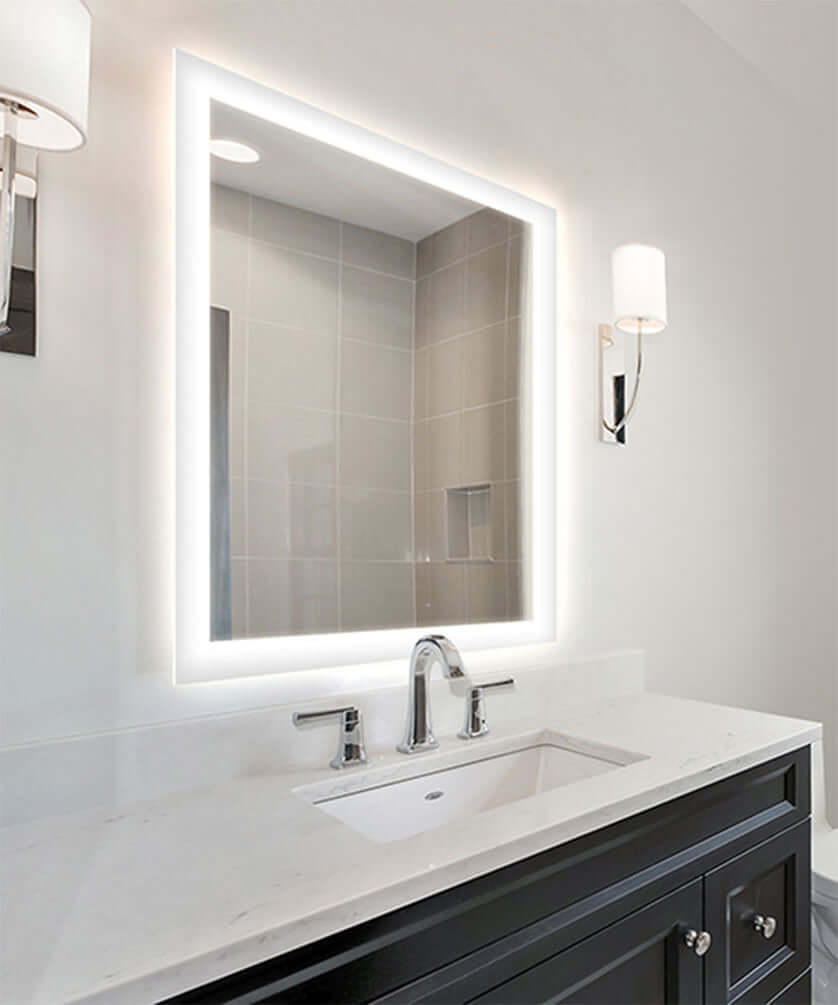

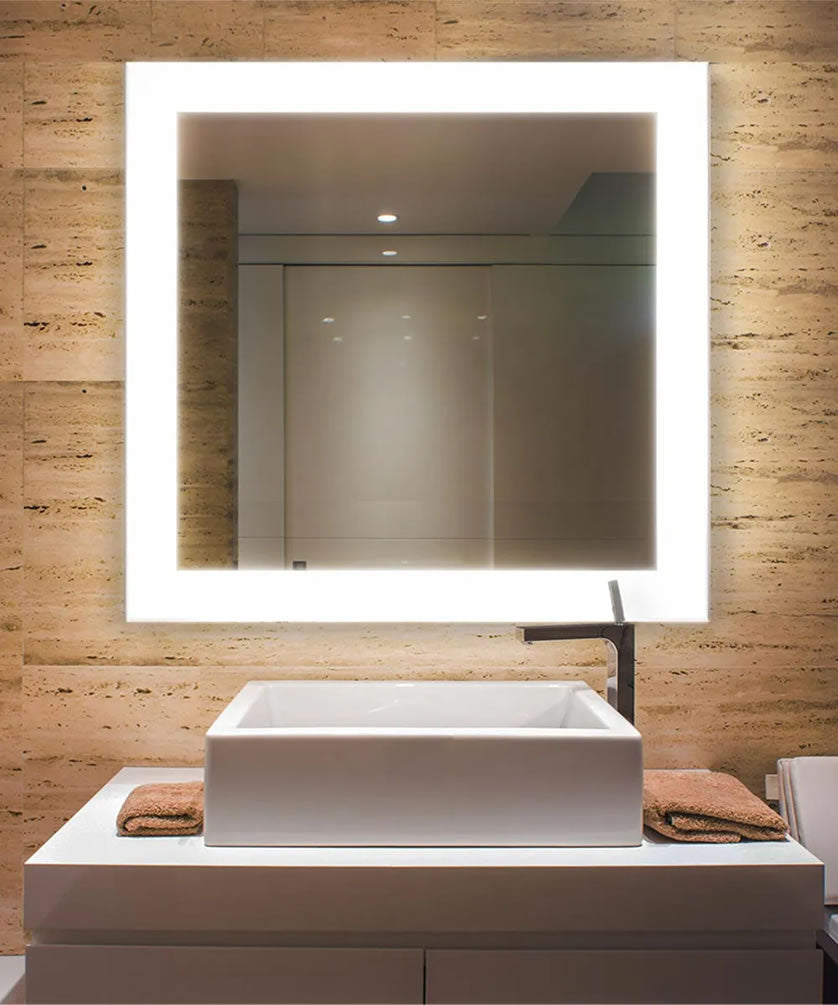

A 2-inch diffuser running around the perimeter provides bright forward-facing task lighting, and luxurious wall glow. The Prestige Vanity Mirror by Cordova will "light up" your bathroom, or any room in which you'd chose to use it. There are three sizes to fit your space - see the specs. The lighting is dimmable by a forward-phase dimmer/wall-switch (by others). The color temperature of the LEDs is 3,000 Kelvin, which means it's almost identical to regular indoor lighting. The life span of the LEDs is 50,000 hours - which means 23 years of 3-hour daily operation. And, the color rendering index (CRI) is 90+ for natural and pleasing color rendition. PrimeMirror safety backed glass is used - copper free and corrosion resistant. Meets UL/cUL standards and is Title 24 compliant.

1. 24" x 36" - 4,680 Lumens, 50 Watts
2. 30" x 42" - 5,940 Lumens, 62 Watts
3. 36" x 36" - 5,940 Lumens, 62 Watts

Features

• Cordova's Prestige LED Vanity Mirror uses copper-free, corrosion-resisant PrimMirror glass with 2 inch precision frosted LED band surrounding the perimeter.
• LED Lighted font-facing and halo wall-glow lighting with 50,000 hour dimmable LEDs.
• For use with a forward-phase dimmer/wall switch (by others).
• LEDs are at 3,000 degrees Kelvin, almost identical to regular incandescent lighting, and with a Color Rendering Index (CRI) of 90+
• 120 Volts. 3-year limited Manufacturer's warranty. UL Listed for the US and Canada. Title 24 compliant.
• Easy Installation.

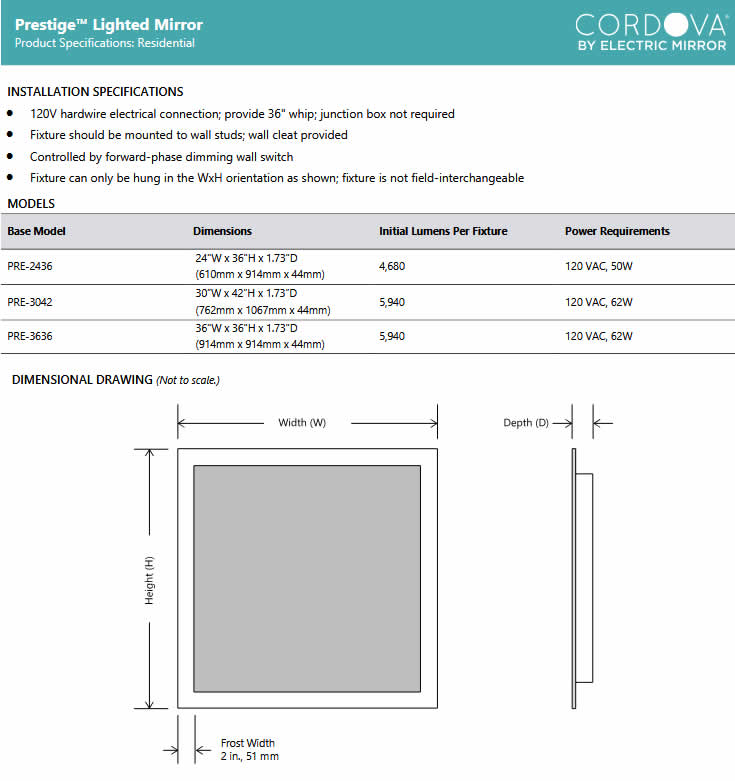

Mounting Instructions

Cordova Mounting Instructions

Mounting

Lighted mirrors include three components: a wall cleat, magnetic catch plates and the mirror fixture. Mounting holes are provided in the wall cleat and the catch plates for ease of installation. After the cleat and catch plates are mounted, the mirror fixture is hung on the wall cleat. Magnets at the bottom of the fixture will connect with the catch plates holding the bottom of the fixture to the wall.

The mirror fixture is designed to be surface mounted to your wall. However, if you would like to recess the unit, ensure the mirror face is proud of the wall and only the LED extrusion and power box are recessed. Units with wall glow should not be recessed. Mirror fixture should be mounted to wall studs or other suitable backing material.

A 1″ clearance is needed above the top edge of the mirror to hang the mirror properly. Additionally, maintain .25″ on the left, right, and bottom of the mirror to allow for installation tolerances.

The chassis comes ready to hardwire for 120V. The power whip should come through the back of the unit for the hardwire connection. A 36″ long power whip can be prepared 12″ down from the top of the mirror and centered from left to right. A quick disconnect is included so the wires can easily be connected. No J-Box is required.

Width x Height Orientation

Fixture can only be hung in the WxH orientation as shown; fixture is not field-interchangeable.
