Unity Bathroom LED Mirror with Frosted Band - Cordova

Inset from the polished edge precision border, there's a frosted 1-inch frosted LED light, running the perimeter of the mirror, casting a beautiful, natural 3,000 degree Kelvin LED light. This beautiful mirror can be a welcome addition to your bathroom. Or any room. There are three sizes to accommodate smaller to larger spaces. The LED lifespan is 50,000 hours, yet they're replaceable in the unlikely event one should ever fail. The LEDs are dimmable by a forward-phase dimming switch (not included) - or simply use a standard on/off wall switch for control. There are no special requirements and the mirror can operate on 120 or 240 Volts - hardwired.

1. 24" x 36" - 4,200 Lumens, 49 Watts
2. 30" x 42" - 5,400 Lumens, 58 Watts
3. 36" x 36" - 5,400 Lumens, 58 Watts
4. 36" x 42" - 5,940 Lumens, 64 Watts
5. 48" x 36" - 6,500 Lumens, 76 Watts

Features

• Copper-free, corrosion-resisant PrimMirror glass with 1 inch precision frosted band inset from the polished edge.
• LED Lighted font-facing and halo wall lighting with 50,000 hour replaceable and dimmable with LEDs, using a forward-phase dimmer.
• LEDs are at 3,000 degrees Kelvin, almost identical to regular incandescent lighting, and with a Color Rendering Index (CRI) of 90+
• 120 Volts. 3-year limited Manufacturer's warranty. UL Listed for the US and Canada.
• Easy Installation.

Mounting Instructions

Cordova Mounting Instructions

Mounting

Lighted mirrors include three components: a wall cleat, magnetic catch plates and the mirror fixture. Mounting holes are provided in the wall cleat and the catch plates for ease of installation. After the cleat and catch plates are mounted, the mirror fixture is hung on the wall cleat. Magnets at the bottom of the fixture will connect with the catch plates holding the bottom of the fixture to the wall.

The mirror fixture is designed to be surface mounted to your wall. However, if you would like to recess the unit, ensure the mirror face is proud of the wall and only the LED extrusion and power box are recessed. Units with wall glow should not be recessed. Mirror fixture should be mounted to wall studs or other suitable backing material.

A 1″ clearance is needed above the top edge of the mirror to hang the mirror properly. Additionally, maintain .25″ on the left, right, and bottom of the mirror to allow for installation tolerances.

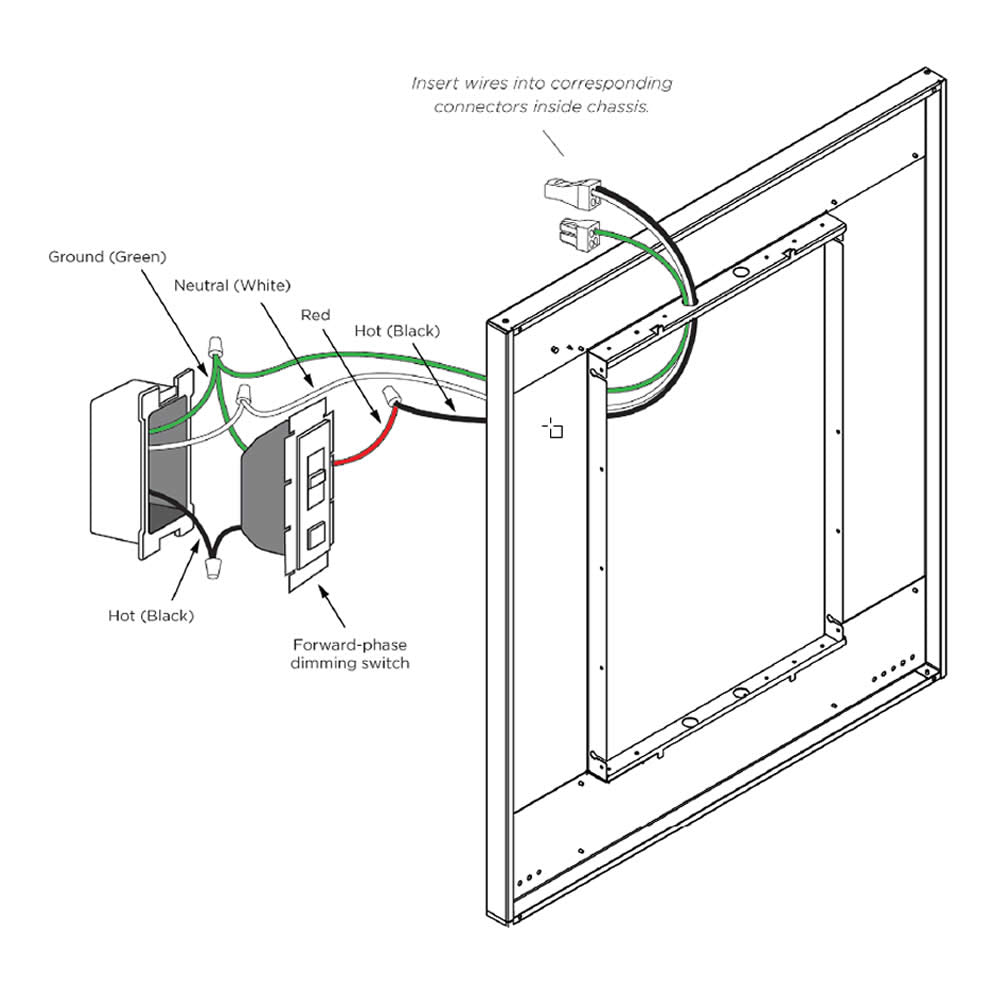

The chassis comes ready to hardwire for 120V. The power whip should come through the back of the unit for the hardwire connection. A 36″ long power whip can be prepared 12″ down from the top of the mirror and centered from left to right. A quick disconnect is included so the wires can easily be connected. No J-Box is required.

Width x Height Orientation

Fixture can only be hung in the WxH orientation as shown; fixture is not field-interchangeable.
